Injecting high-pressure oxygen or powders into Electric Arc Furnaces (EAF) and Induction Furnaces (IF) exposes furnace operators to severe CA Lance operational hazards, such as oxygen flashbacks, pipe bursts, molten metal splashing, and sudden structural failure under extreme thermal stress.
To protect melt shop crews and maintain continuous production, strict calorized lance safety standards must be integrated directly into the manufacturing process. This article explains how Daiwa CA Lance minimizes operating hazards through enhanced structural integrity, high-purity surface cleaning, certified quality management, and secure handling standards.
How Daiwa CA Lance Eliminates Major Operational Hazards
Preventing Pipe Bending & Explosion Under High Thermal Stress
The Hazard: Standard untreated mild steel pipes soften and lose structural strength rapidly above 1,000°C, leading to pipe bending, uncontrolled gas direction, or sudden collapse inside the furnace.
Daiwa Solution: Preventing CA Lance bending is achieved through superior calorized lance structural integrity. Daiwa CA Lance withstands extreme working temperatures up to 1,600°C. In high-temperature exposure tests (1,270°C for 50 hours), untreated mild steel pipes completely deformed and failed, whereas Daiwa CA Lance maintained its original shape and load-bearing strength. This deformation resistance ensures precise oxygen blowing and protects operators from unexpected pipe deflection.

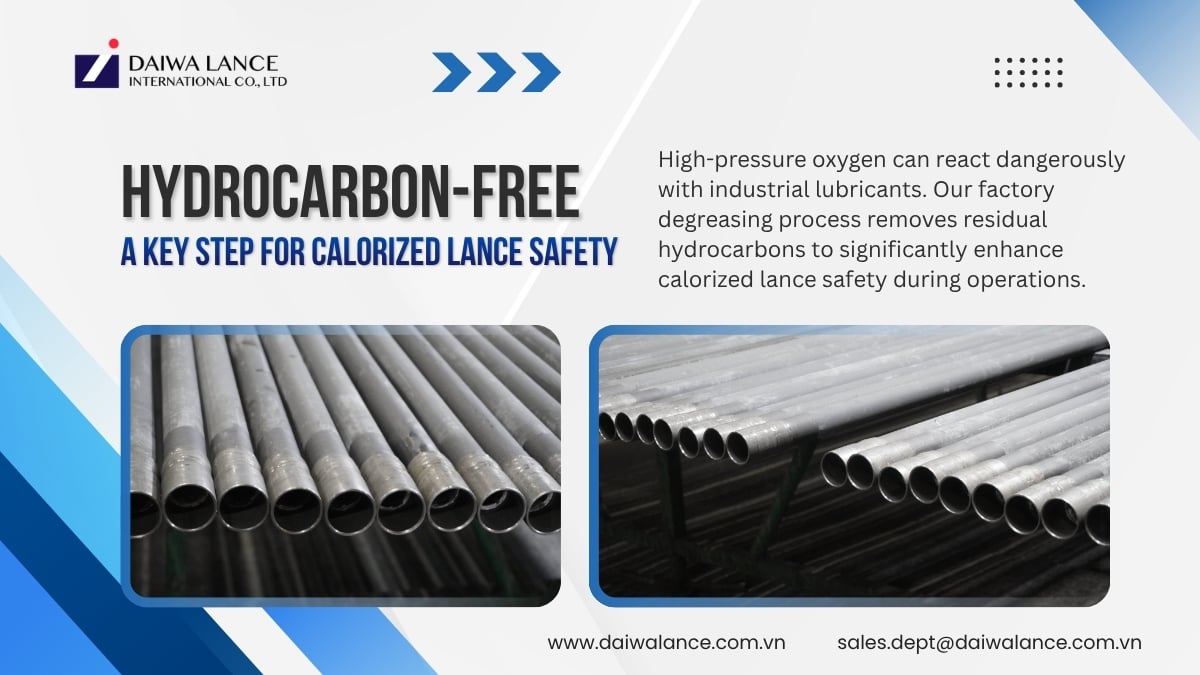

Eliminating Oxygen Flashback with Clean Surface Standards
The Hazard: Residual oils, grease, or processing lubricants inside or outside an oxygen pipe act as immediate fuel. When exposed to high-pressure pure oxygen, these contaminants trigger violent internal explosions and hazardous flashbacks toward the manifold.
Daiwa Solution: Maintaining a clean calorized lance surface is a non-negotiable safety protocol. Every Daiwa CA Lance undergoes a specialized factory degreasing process to guarantee a completely oil-free and grease-free condition before applying protective layers, eliminating a root cause of oxygen-hydrocarbon fires.
Dual-Layer Protection Against Thermal Oxidation and Slag Splash
The Hazard: Molten slag, steel droplets, and aggressive thermal oxidation rapidly erode steel pipes, causing localized burn-through and severe molten splash back onto workers.

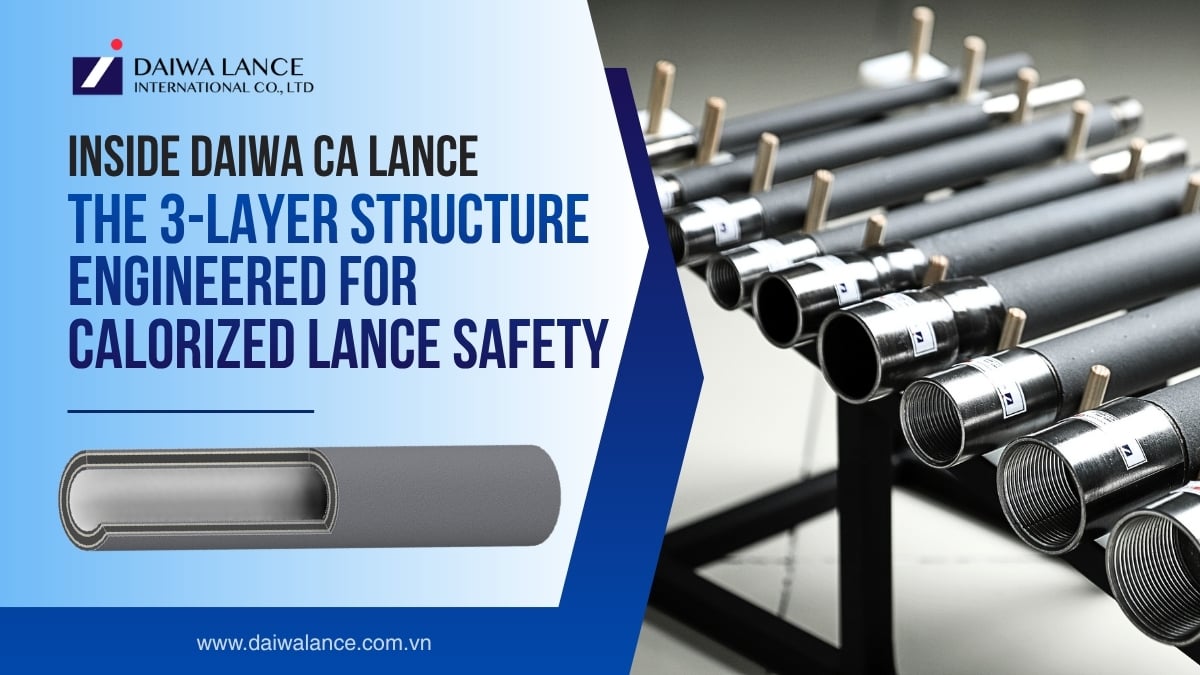

Daiwa Solution: Daiwa CA Lance features a 3-layer protective engineering design:
- Diffused Al-Fe Alloy Layer: Provides exceptional CA Lance oxidation resistance by forming an alumina (Al₂O₃) protective film with a high melting point (2,050°C).
- Refractory Ceramic Outer Coating: Offers calorized lance splash protection by shielding the pipe against direct slag attack and liquid steel abrasion, drastically reducing burn-through risks.
Engineering Specifications That Support Calorized Lance Safety
Structural consistency is crucial for high-pressure gas delivery. Weak points in the pipe wall or improper seam welds increase the risk of bursting under pressure.
Uniform Wall Thickness - Manufactured with precise CA Lance wall thickness ranging from 2.0 mm to 4.0 mm (sizes ¼” to 2"), ensuring pressure is distributed evenly without weak spots.
Inspected Weld Seams - Every calorized lance weld seam undergoes strict quality inspection to guarantee leak-free gas transmission and prevent catastrophic tearing under pressure.
Verified Quality Management & International Compliance
Industrial safety cannot rely on unverified claims. Daiwa CA Lance is manufactured at the Daiwa Lance International facility in Ho Chi Minh City, Vietnam - leveraging Japanese technology and inspection process - under strict international regulations:
- Calorized Lance JIS Compliance - Guarantees precise physical dimensions, pipe straightness, and material grade consistency according to Japanese Industrial Standards.
- CA Lance ISO 9001 Certification - Ensures rigid ca lance quality control with fully documented testing protocols applied to every production batch.
- Calorized Lance Environmental Standard (ISO 14001) - Validates eco-friendly, responsible manufacturing practices.
Safe Handling, End Configurations, and Global Logistics
Safe Installation with Proper End Configurations

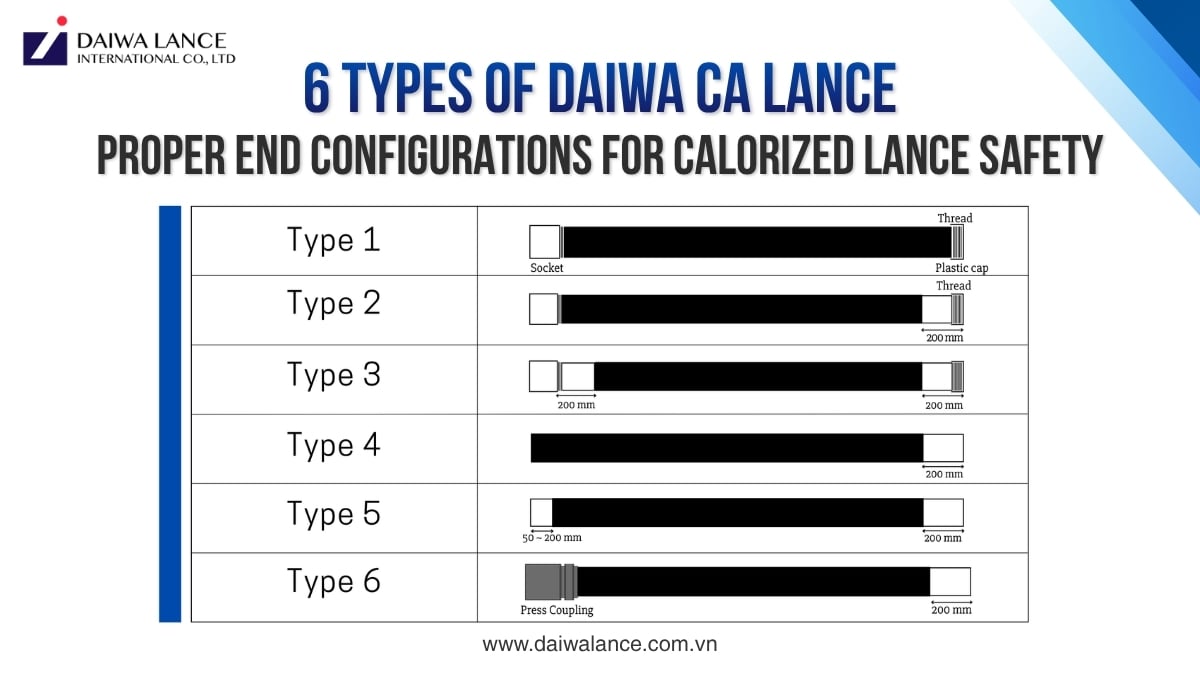

To ensure safe calorized lance handling on the furnace floor and prevent improper connections or dangerous gas leaks, Daiwa CA Lance offers 6 standard end configurations tailored to various holder mechanisms:
- Type 1 – Both ends are threaded and fitted with one screw socket and one plastic cap. Full coating from end to end.
- Type 2 – Both ends are threaded and fitted with one screw socket and one plastic cap. One end is free of coating about 200 mm.
- Type 3 – Both ends are threaded and fitted with one screw socket and one plastic cap. Both ends are free of coating about 200 mm.
- Type 4 – Both ends are plain, with no thread. One end is free of coating about 200 mm.
- Type 5 – Both ends are plain, with no thread. Both ends are free of coating about 200 mm and 40 mm, respectively.
- Type 6 – One end is fitted with a press coupling. The other end is free of coating about 200 mm.
Bundling & Global Logistics Protection
To maintain safety standards during transit, calorized lance bundle packaging uses reinforced steel strapping tailored to pipe size (from 250-piece bundles for 1/4" to 35-piece bundles for 2"). This prevents ceramic coating abrasion, ensuring intact delivery via ca lance global logistics across 52+ countries.
Conclusion
Ensure high furnace safety by switching to Daiwa CA Lance, an engineered solution designed to minimize operational hazards like oxygen flashbacks, pipe bending, and molten splash. Featuring an oil-free surface, strict wall thickness tolerances, and a multi-layer protective coating certified to JIS and ISO 9001 standards, Daiwa CA Lance helps maintain structural integrity and heat resistance up to 1,600°C.
Protect your melt shop workforce and minimize costly downtime. Free evaluation samples are available (MOQ: 50 pieces) - Request a Quote or Download the Catalogue now.
FAQ About Daiwa Calorized Lance Safety and Performance
Why is grease removal mandatory for oxygen blowing safety?
Hydrocarbons in grease or oil ignite violently when exposed to high-pressure pure oxygen. Ensuring an oil-free surface eliminates the primary risk of backfires and manifold explosions.
How does Daiwa CA Lance prevent bending under extreme heat?
The combination of a calorized Al-Fe diffusion layer and a refractory ceramic outer coating protects the inner steel core from heat degradation up to 1,600°C, maintaining structural straightness during injection.
How do JIS compliance and ISO certifications support plant safety?
They guarantee batch-to-batch material consistency, dimensional accuracy, and zero structural defects, giving plant managers full reliability during operation.
How do the Type 1 to Type 6 end configurations affect safe handling for operators?
Different plants use different lance holders and manual or automated pipe-changing systems. By offering threaded connections with sockets, plain ends, and a press-coupling option, Daiwa CA Lance lets operators select the configuration that fits securely into their specific system. A secure match prevents loose connections, accidental pipe ejection, and hazardous gas leaks on the furnace floor.
