Daiwa Calorized Lance Sizes and Configurations: Furnace Setup Guide

Are mismatched lance pipe dimensions causing rapid material consumption and hazardous gas bottlenecks in your facility? At Daiwa Lance, we see how wrong sizing directly impacts workplace safety and operational budgets. This guide cuts through the confusion by breaking down the full Daiwa calorized lance sizes, sizing charts, and specialized configurations of the Daiwa CA Lance, helping you choose the perfect fit for your specific furnace setup.

Introduction to Industrial Lance Sizing - Why Dimensions Matter

Industrial oxygen lancing involves extreme thermo-mechanical environments where raw gas pressures meet ultra-high molten metal temperatures. To maintain stable processing loops without frequent shutdowns, delivery pipes must adhere to definitive engineering baselines. Establishing universal Daiwa Calorized Lance pipe classification standards allows industrial steel plants to standardize their procurement pipelines.

When custom dimensions are precisely matched to local pneumatic limits and holding systems, melt shops can dramatically lower lance consumption. Daiwa Lance offers highly engineered solutions that systematically solve the thermal degradation common in ordinary mild steel piping.

Standard Sizing and Dimensional Metrics of Daiwa CA Lance

Every metallurgical plant relies on standardized geometric profiles to ensure tight connections with existing gas lines, automatic holders, and robotic feeding arms. Exploring a broad matrix of standard Daiwa Calorized Lance sizes allows operators to align their raw material inputs with precise thermal requirements. This comprehensive Daiwa Calorized Lance dimensions guide ensures that engineering departments can easily cross-reference nominal pipe designations against actual workshop physical space.

To bridge global engineering differences, understanding the Daiwa Calorized Lance nominal diameter metric helps procurement teams accurately convert European, American, or Japanese sizing structures into a unified shop floor standard:

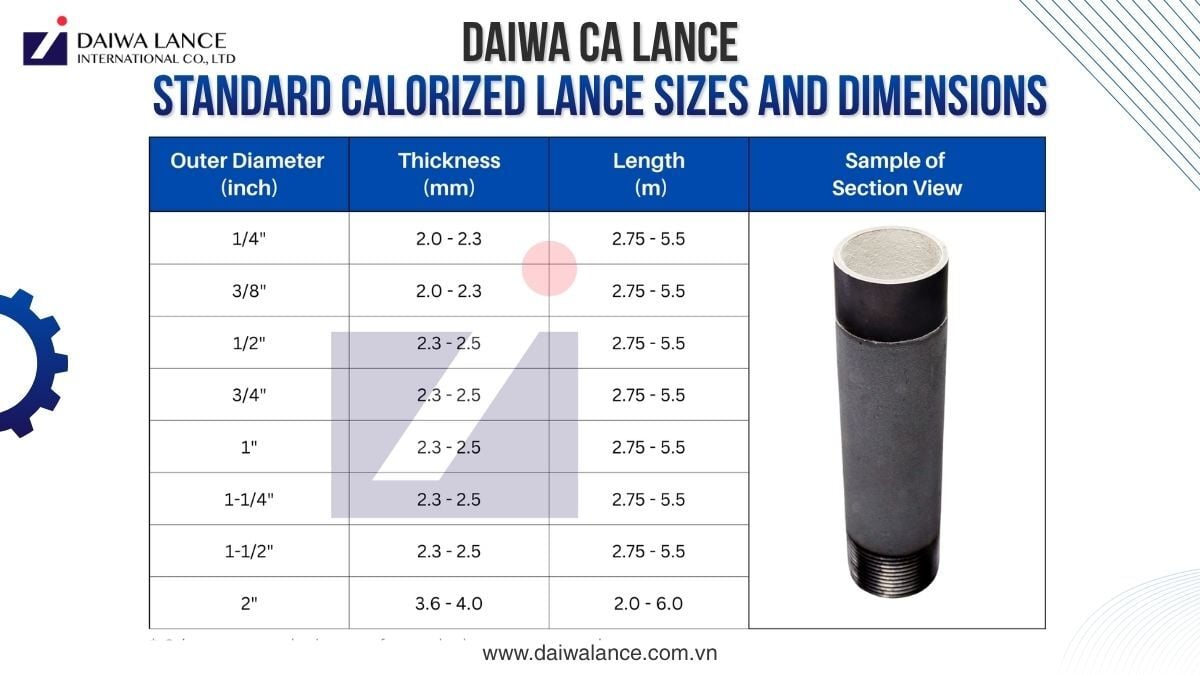

• Size 6A (1/8") - Outside Diameter is 10.5 mm, Thickness is 2.0 mm, Standard Length is 2,750 mm, and Bundle Size is 500 pcs.
• Size 8A (1/4") - Outside Diameter is 13.8 mm, Thickness is 2.3 mm, Standard Length is 5,500 mm, and Bundle Size is 250 pcs.
• Size 10A (3/8") - Outside Diameter is 17.3 mm, Thickness is 2.3 mm, Standard Length is 5,500 mm, and Bundle Size is 250 pcs.
• Size 15A (1/2") - Outside Diameter is 21.4 mm, Thickness is 2.3 mm, Standard Length is 5,500 mm, and Bundle Size is 200 pcs.
• Size 20A (3/4") - Outside Diameter is 26.5 mm, Thickness is 2.3 mm, Standard Length is 5,500 mm, and Bundle Size is 200 pcs.
• Size 25A (1") - Outside Diameter is 33.3 mm, Thickness ranges from 2.3 to 2.5 mm, Standard Length is 5,500 mm, and Bundle Size is 100 pcs.
• Size 32A (1.1/4") - Outside Diameter is 42.0 mm, Thickness ranges from 2.3 to 2.5 mm, Standard Length is 5,500 mm, and Bundle Size is 100 pcs.
• Size 40A (1.1/2") - Outside Diameter is 48.2 mm, Thickness ranges from 2.5 to 2.8 mm, Standard Length is 5,500 mm, and Bundle Size is 50 pcs.

Utilizing these diverse Daiwa calorized lance sizes guarantees that whether a facility is executing delicate micro-alloying adjustments or high-volume scrap melting, a certified dimensional solution is immediately available.

Analyzing Component Geometry - Diameters, Thickness, and Weight

Reviewing the physical proportions of a lance pipe involves analyzing the relationships between external clearance, internal volume, and total mass. Reviewing Daiwa CA Lance outer diameter variants allows plant engineers to calculate the exact clearance needed for furnace port bricks. Simultaneously, verifying specific Daiwa Calorized Lance internal diameter parameters is critical for pneumatic teams to calculate precise gas velocities and volumetric flow rates.

Safety under high dynamic stress requires selecting Daiwa CA Lance thickness profiles (commonly 2.0 - 4.0 mm) that match the heavy loads and internal pressures of the melt shop. Furthermore, running a precise Daiwa Calorized Lance weight per meter calculation is essential for logistics coordinators to prevent crane overloads and ensure automated feeding systems regulate speeds smoothly. Evaluating these geometric factors ensures you choose the proper Daiwa calorized lance sizes to balance material weight with robust mechanical strength.

Matching Custom Specs to Specific Industrial Furnaces

Every industrial furnace has unique geometric constraints, operating temperatures, and production cycle targets. Finding an exact Daiwa Calorized Lance sizing chart for EAF operations helps melt shop supervisors choose the best pipes for cutting large steel scrap, removing excess carbon, and injecting lime powder efficiently. Selecting the right dimensions prevents the lance from burning away before it can reach the core of the scrap pile, ensuring steady, continuous operations.

Matching Daiwa CA Lance specs to furnace setup parameters prevents premature thermal failure and eliminates gas waste. For example, selecting a specific Daiwa Calorized Lance sizing for ladle refining furnace operations ensures a steady, controlled stream of inert gases like argon or nitrogen. This stable flow promotes uniform temperature distribution and a cleaner steel matrix. Evaluating these specialized Daiwa calorized lance sizes ensures that injection pipes perform reliably across all refining configurations.

Advanced Engineering - Lengths, Connectors, and Custom Configurations

Standard factory items cannot always meet the needs of unique or highly specialized melt shop layouts. Providing custom Daiwa CA Lance length specifications allows factories to order pipes cut to exact operational dimensions, eliminating the need for hazardous on-site welding or manual trimming by furnace crews. To handle continuous, ultra-high-temperature processes, utilizing heavy-duty Daiwa CA Lance configuration types provides extra structural safety and deeper furnace penetration.

• Type 1 - Both ends are threaded and fitted with one screw socket and one plastic cap. Full coating from end to end.
• Type 2 - Both ends are threaded and fitted with one screw socket and one plastic cap. One end is free of coating about 200mm.
• Type 3 - Both ends are threaded and fitted with one screw socket and one plastic cap. Both ends are free of coating about 200mm.
• Type 4 - Both ends are plain, with no thread. Both ends are free of coating about 200mm.
• Type 5 - Both ends are plain, with no thread. Both ends are free of coating about 200mm and 40mm, respectively.
• Type 6 - One end is fitted with a press coupling. Other end is free of coating about 200mm.

To accommodate high gas volumes without causing pressure drops, plants can utilize high-flow Daiwa CA Lance connector models to maintain clean pneumatic paths across pipe joints. Reviewing available Daiwa Calorized Lance thread specification variations allows purchasing teams to match new orders with existing plant infrastructure, whether using standard NPT, BSP, or specialized metric threads.

Additionally, deploying customized Daiwa CA Lance coupling dimensions allows fast, reliable pipe changeovers under hot working conditions, creating tight, leak-free seals that prevent unsafe gas leaks on the furnace floor. Reviewing the complete catalog of Daiwa calorized lance sizes ensures that every connection point remains perfectly sealed and structurally sound.

Operational Efficiency - The Impact of Size on Gas Injection Performance

The physical dimensions of an injection pipe directly influence chemical reaction rates inside the molten bath. Choosing the optimal Daiwa CA Lance size for oxygen injection ensures the correct gas velocity to cut through heavy scrap efficiently without causing excessive splashing. If the pipe diameter is too small, gas flow becomes choked, which prolongs melt cycles; conversely, an oversized pipe creates violent turbulence that erodes the furnace's refractory lining.

By balancing outer diameter options with tailored inner bore dimensions, Daiwa CA Lance allows plants to maintain stable fluid dynamics. This precise control maximizes the efficiency of the protective aluminum oxide film that forms under extreme heat, reducing material consumption and ensuring high-output production cycles. Selecting the proper Daiwa calorized lance sizes is ultimately what secures maximum heat resistance and optimal injection efficiency.

Optimizing Your Melt Shop with Precise Sizing

Selecting the right Daiwa calorized lance sizes is key to improving safety, efficiency, and cost-effectiveness in high-temperature furnace operations. By matching precise diameters, wall thicknesses, and connection styles to your setup, your facility can maximize the benefits of Daiwa Lance's dual-layer protection.

Combining a specialized calorized aluminum-iron alloy layer with an outer refractory ceramic coating, Daiwa CA Lance offers a durable alternative to standard untreated pipes that reduces material consumption and secures stable production cycles. To optimize your facility, you can request a technical sizing consultation, download complete dimensions chart, or contact our engineering team.

FAQ About Daiwa Calorized Lance Sizes and Configurations

What are the most common standard Daiwa Calorized Lance sizes used for typical Electric Arc Furnaces (EAF)?

For typical Electric Arc Furnaces (EAF), the most common sizes range from 25A (1") to 40A (1.1/2"). These profiles feature outside diameters between 33.3 mm and 48.2 mm with a robust wall thickness of up to 2.8 mm. This provides the structural strength and gas flow capacity required for aggressive oxygen blowing and scrap cutting. Choosing the right Daiwa calorized lance sizes prevents premature burning and maintains steady bath penetration.

How do I choose between different Daiwa CA Lance outer diameter variants for high-pressure oxygen vs. carbon injection?

Choosing between different Daiwa CA Lance outer diameter variants depends on the density of the material being injected and the target gas velocity. High-pressure oxygen injection requires larger diameters (such as 32A or 40A) to deliver high volumes without over-pressurizing the supply lines. Carbon or lime powder injection utilizes mid-sized options to maintain the consistent particle velocity needed to prevent powder settling and line clogging.

Can Daiwa supply custom Daiwa CA Lance length specifications, or am I restricted to standard metrics?

Daiwa Lance can manufacture custom Daiwa CA Lance length specifications tailored to your specific furnace geometry, automated manipulator limits, or worker safety clearance zones. While standard lengths are typically 2,750 mm or 5,500 mm, custom lengths can be produced to eliminate the need for dangerous on-site cutting or welding, ensuring maximum safety and out-of-the-box utility.

Why is selecting the correct Daiwa Calorized Lance wall thickness critical for safety in a ladle refining furnace?

Selecting the correct selecting Daiwa CA Lance thickness is critical because secondary metallurgy processes involve long submersion times in molten steel and corrosive slag. A wall thickness that is too thin can fail under hot pneumatic loads, leading to dangerous gas leaks or pipe collapse. Opting for thick-walled options (from 2.5 mm to 2.8 mm) ensures the structural core can withstand the static pressure of the liquid metal bath.

What variations are available for Daiwa Calorized Lance thread specifications and coupling dimensions to prevent gas leaks?

Daiwa Lance offers multiple connection options, including Type 1, 2, and 3 threaded configurations equipped with high-quality screw sockets and protective caps, as well as Type 6 quick press-couplings. By matching specific Daiwa Calorized Lance thread specification variations and customized Daiwa CA Lance coupling dimensions to your lance holders, you can eliminate dangerous gas leaks and minimize changeover times on the furnace floor.
