To meet the need for swaging steel pipes and steel tubes to connect two pieces together without using fittings such as couplings, sockets, or threads, we have developed a specialized equipment called Daiwa Swaging Machine. With its smooth, durable operation and simple handling, Daiwa Swaging Machine is truly convenient for processing steel pipes and steel tubes without any waste. For more details, check out our blog post below.
What is Swaging?
Swaging is an action of forging, hitting, pressing, or hammering metal into a particular shape.
Swaging is often used in various industries, such as aerospace, automotive, and construction, for creating parts like cables, fittings, and metal components that require precise shaping and high strength.
The advantages of swaging include the ability to produce parts with tight tolerances and improved mechanical properties due to work hardening.
What is Daiwa Swaging Machine?
Daiwa Swaging Machine is a type of metalworking equipment used to forge, hit, press or hammer metal parts through the application of hydraulic pressure.
Daiwa Swaging Machine have several benefits including:
- Eliminate the need for fittings.
- Eliminate the risk of leaks.
- Reduce the time for joining two pieces by hands with threads, socket or couplings.
Daiwa Swaging Machine is Used for Which Product?
With the ability to reduce the diameter or create special shapes at the ends of pipes for easy connection or installation, Daiwa Swaging Machine is specifically used for steel pipes or steel tubes. Particularly, it is designed for pipes used as winding shafts like Daiwa Color Pipe, pipes used in scaffolding like Daiwa HT Pipe, or for other mechanical purposes.

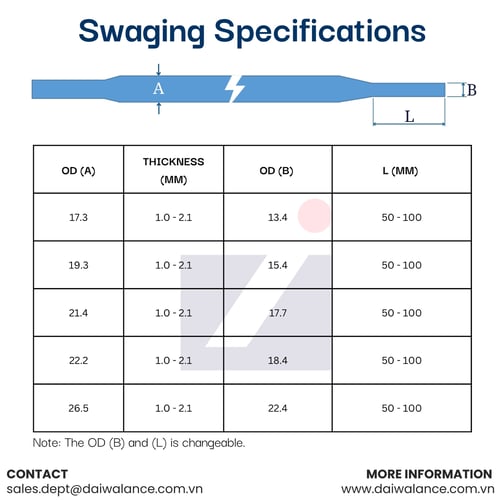

Product Sizes that Daiwa Swaging Machine Can Process
Depending on the usage needs and technical requirements, pipes can be swaged to various sizes. Below are some typical sizes that the Daiwa Swaging Machine can process.
Note: Besides these sizes, if you need other dimensions for Outer Diameter (OD (B)) and Length (L), you can also contact us to provide specific machining requirements by clicking the link below.
Technical Specifications of Daiwa Swaging Machine
To better understand Daiwa Swaging Machine, please refer to the technical specifications below.
| Machine Name | Daiwa Swaging Machine |
| Function | Reduce the diameter or create special shapes at the ends of pipes for easy connection or installation |
| Type | Electro hydraulic |
| Motor Power | 3.7KW, 380V |
| Swaging Speed | 200pcs/H |
| Machine Weight | 800kgs |
| Max OD | 26.5mm |
| Max Thickness | 2.1mm |
How to Operate Daiwa Swaging Machine
There are a total of 6 steps to operate Daiwa Swaging Machine safely and effectively. The details are as follows.
- Set the pipes with support to balance the height with the center of the machine.
- Turn on the power of the machine.
- Move the pipe to the holder in the correct position.
- Push the start button to begin swaging.
- Remove the pipe after the travel is finished.
- Place the next pipe to continue swaging.
Advantages of Daiwa Swaging Machine
Using Daiwa Swaging Machine to connect steel pipes or steel tubes brings the following benefits:
- High productivity.
- Smooth and durable operation.
- Simple to operate.
- After swaging, the pipe is straight and not bent, so there is no need to straighten it again.
Precautions for Using Daiwa Swaging Machine
During operation, it is essential to minimize unsafe practices to prevent accidents. Here are some small reminders for operating Daiwa Swaging Machine.
- Do not place hands in the press mold area while the machine is running.
- Follow the instructions carefully.
- Do not use the machine for other purposes to ensure safety and prevent damages.
Conclusion
In the above article, we have summarized all the purpose of use, technical specifications, operation methods, advantages, and precautions of Daiwa Swaging Machine.
To achieve quick, safe, convenient, and cost-effective results when using Daiwa Swaging Machine , make sure you have a thorough understanding of this technical machinery.
If you have any further questions or concerns, please do not hesitate to contact us by clicking the link below.
